FOX smooth body shocks are available in a broad range of sizes and that are all specifically valved for your application. FOX has the perfect shock for your project with multiple mounting options to choose from. Our smooth body shocks provide years of unparalleled performance at a competitive price.

Body

Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies

Components

Black anodized 6061-T6 billet aluminum

Shaft

7/8" hard chrome plated stainless steel 17-4 H900

Piston

Race-developed high-flow piston design

Valving

Proprietary deburred valve shims

Seals

Redundant sealing pack system main seal, wiper seal, scraper seal
Optional high temperature Viton seals

Oil

Specially formulated for ultimate performance at variable temperatures

Reservoir

Remote
Optional 90 degree fittings
Custom hose lengths available

Mounting

Lined, heat-treated, alloy steel spherical bearings
1/2" bolt x 1 1/4" wide

Travel	Extended	Compressed	Valving	Shaft	Part Number
10"	29.43"	19.43"	50/70	7/8"	980-02-101
12"	33.43"	21.43"	50/70	7/8"	980-02-102
14"	38.43"	24.43"	50/70	7/8"	980-02-103
16"	42.43"	26.43"	50/70	7/8"	980-02-104

2.5 Smooth Shocks

Price

Collections

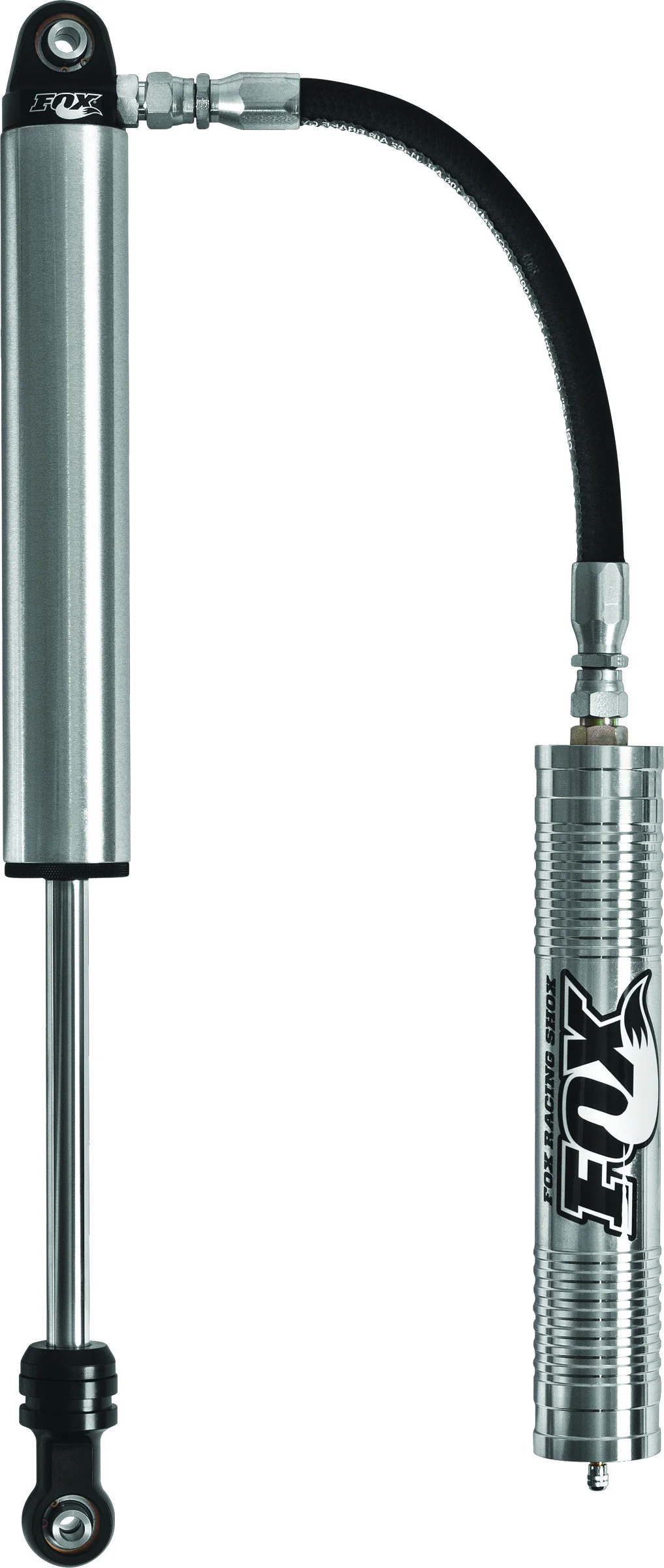

Fox 2.5 Factory Series Smooth Body Remote (4 Travel Options)
