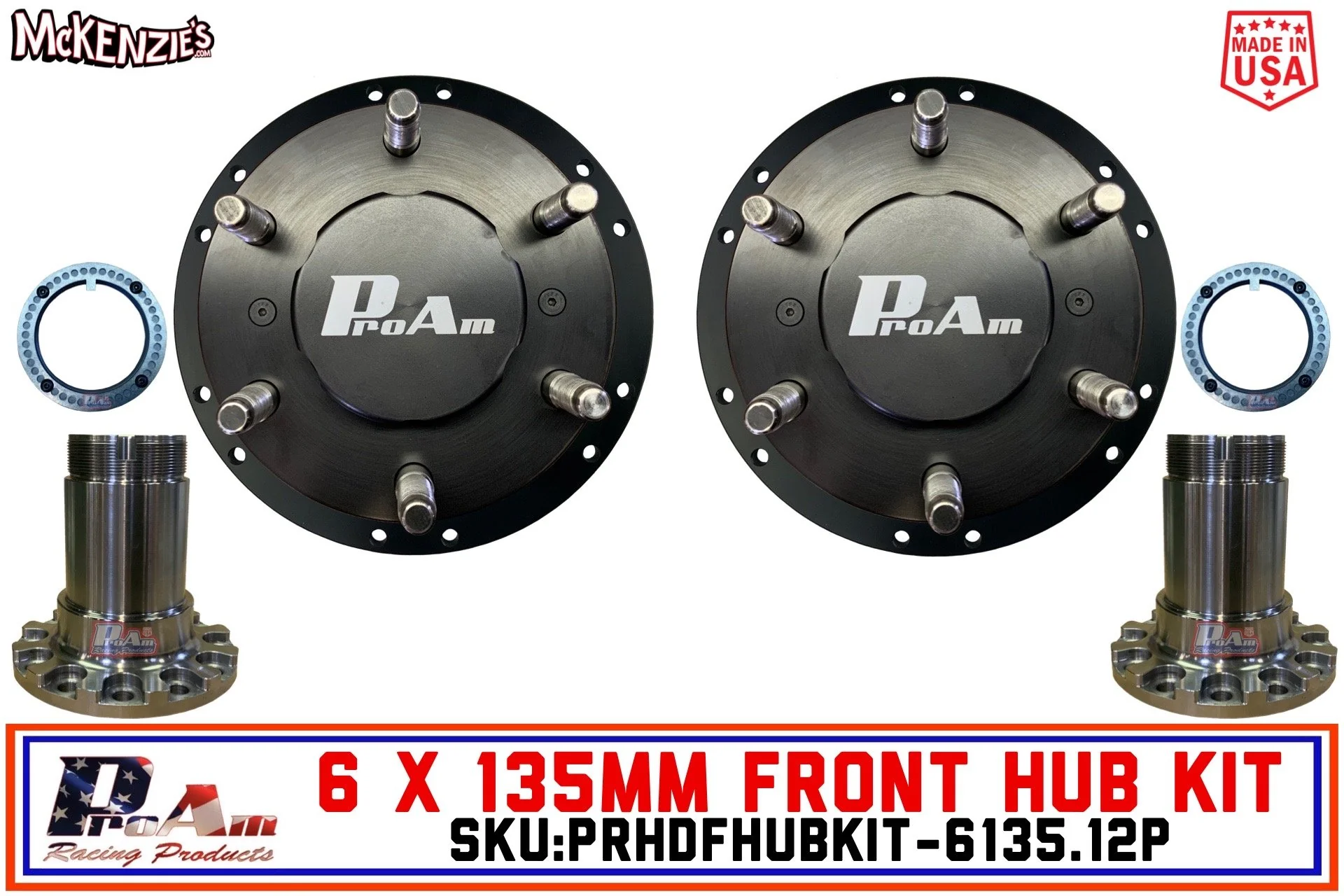

ProAm 6 on 135mm HD Front Prerunner Truck Hubs | 12-Bolt PRM Snouts | IronMan Series

ProAm Racing IronMan Series HD Prerunner Truck Hubs. Built for Mild to Wild Prerunners, these Heavy Duty kits are designed for use on vehicles with a minimum 17" wheels on up to 40" tires.

SKU: IRM-PRHDFHUBKIT-6135.12P

Kit Features:

• 6 on 135mm lug pattern
• 5/8-18 TT Studs
• 2.50" ProAm, IronMan Spec Snouts & locking snout nuts
• Hubs, & adapter plates manufactured from Aerospace quality Aluminum
• Hubs, & adapter plates Brilliant Black hard anodized finish
• Narrow width, 4.76" snout face to wheel face

Kit Includes:

• IRM-PRHDFHUB6135-1 (QTY 2x) | 6 on 135mm Billet Hub
• IRM-PRF/RHUB6XX-2 (QTY 2x) | Rotor Adapter Hat
• IRM-PRF/RHUB-2a (QTY 12x) |Rotor Adapter Hardware
• IRM-PRHDFHUB6135-4 (QTY 2x) | 6 on 135mm Front Hub Cap
• IRM-PRF/RHUB-4a (QTY 2x) | 6 on 135mm Front Hub Cap O-Ring
• IRM-PRF/RHUB-4b (QTY 4x) | 6 on 135mm Front Hub Cap 1/4-28x.625" FHCS
• IRM-PRHDF/RHUB-7 (QTY 12x) | 5/8-18 PRM TT Spec Studs
• IRM-PRF/RHUB-12 (QTY 2x) | 2.50" ID PRM Spec Crush Sleeves
• BRG-L610510 (QTY 4x) | 2.50" ProAm Spec Bearing Race
• BRG-L610549 (QTY 4x) | 2.50" ProAm Spec Bearing
• BRG-29872 (QTY 2x) | 2.50" ProAm Spec Seal
• IRM-PRFS2500L-12P (QTY 1x) | 2.50" ProAm IronMan PRM Spec 12-bolt L/H Snout
• PRM-TT2500SNLKIT (QTY 1x) | 2.50" ProAm L/H Snout Nut, Lock Washer kit
• IRM-PRFS2500R-12P (QTY 1x) | 2.50" ProAm IronMan PRM Spec 12-bolt R/H Snout
• PRM-TT2500SNRKIT (QTY 1x) | 2.50" ProAm R/H Snout Nut, Lock Washer kit

Brake Rotor Options (MINIMUM 17" WHEELS)

• 13" x .810" Rotors - Gas Grooved, Vented ProAm Spec Rotors

• 13.50" x 1.25" Rotors - HD Thick Plate, Vented ProAm Spec Rotors (17" CAST Wheel Package. These rotors clear the wheels when they bend!!)
• 14.00" x 1.25" Rotors - Gas Grooved, Vented ProAm Spec Rotors (17" FORGED Wheel Package. Maximum Rotor OD for Maximum Brake Performance)
• >COMPARISON BETWEEN HD & TT ROTOR HERE<

Stage Options

• STAGE 1: ProAm 6993RGR Pro Series Caliper Package on 13" Rotors
• STAGE 2: ProAm 9996N IronMan Caliper Package (COMING SOON, TBA!!)
• STAGE 3: ProAm 9996R Pro Series Caliper Package on 13.50" HD Rotors
• STAGE 4: ProAm 9996R Pro Series Caliper Package on 14" TT Rotors
• **ALL STAGES COME WITH PROAM SPEC BRAKE PADS & ADDITIONAL HARDWARE FOR ROTOR & CALIPER MOUNTING.**
